US 6,499,148 B2
Swimming goggles with improved wearing comfort and pulling resistance
Terry Chou,
No. 12, Hsin Ho Herng Road,
Tainan City (Taiwan)
Assigned to Gray Matter Holdings LLC,
Baltimore, Md. (US)
Filed on 24-Apr-2001, as Appl. No. Gray Matter Holdings LLC,
Baltimore, Md. (US)
Int. Cl.7A61F 9/02
US 6,499,148 B2
Swimming goggles with improved wearing comfort and pulling resistance
Terry Chou,
No. 12, Hsin Ho Herng Road,
Tainan City (Taiwan)
Filed on Apr. 24, 2001, as Appl. No. 9/840,162.
Prior Publication US 2002/0152543 A1, Oct. 24, 2002
This patent is subject to a terminal disclaimer.
Int. Cl.7A61F 9/02
U.S. Cl. 28212;428
2 Claims

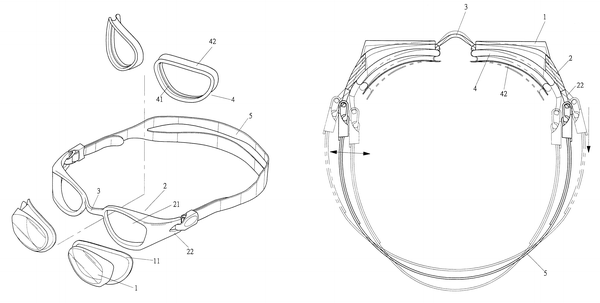

1. A pair of swimming goggles comprising:
two lenses made of rigid material and each including an engaging portion;
two frames each for receiving an associated said lens therein, each said frame having an engaging portion;
a bridge integrally formed with the frames and located between the frames, the frames and the bridge being integrally formed
from a material that is slightly flexible and has a supporting ability;
two padding members made of a flexible material that is softer than that of the frames, each said padding member having a
receiving portion for securely engaging with the engaging portion of the associated lens, each said padding member including
a padding portion in intimate contact with a wearers eye socket; and
a head strap engaging with the engaging portion of the frames.
