Method and apparatus for desalinating sea water, natural salt and fresh water

US 6,500,216 B1
Method and apparatus for desalinating sea water, natural salt and fresh water
Masakatsu Takayasu, 960 Aza Taba, Gushikawa-shi, Okinawa 904-2213 (Japan)
Assigned to Raymond Electric (China) Ltd., Shatin (China)
Filed on 13-Sep-2001, as Appl. No. Raymond Electric (China) Ltd., Shatin (China)
Int. Cl.7C01D 3/06

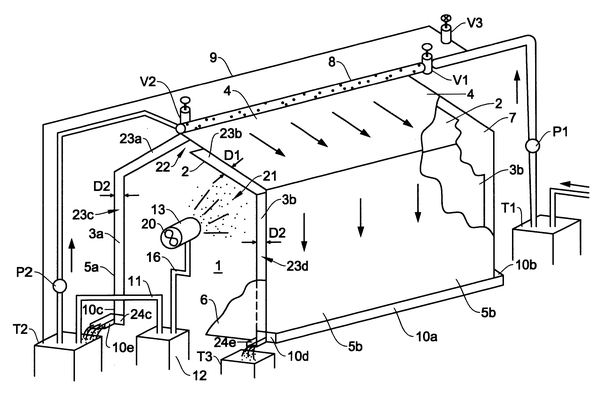

US 6,500,216 B1 Method and apparatus for desalinating sea water, natural salt and fresh water Masakatsu Takayasu, 960 Aza Taba, Gushikawa-shi, Okinawa 904-2213 (Japan) Appl. No. 9/355,697PCT Filed Feb. 16, 1998, PCT No. PCT/JP98/00651PCT Pub. No. WO98/35911, PCT Pub. Date Aug. 20, 1998. Claims priority of application No. 9-050916 (JP), filed on Feb. 18, 1997; and application No. 9-309392 (JP), filed on Oct. 22, 1997. Int. Cl.7C01D 3/06 U.S. Cl. 238212;303 22 Claims 1. A method of treating sea water or condensed sea water for producing salt, comprising the following steps of: providing a treating chamber having a roof and side walls, atomizing sea water into the treating chamber by scattering the sea water with use of a centrifugal generator, evaporating water components of the atomized sea water by blowing warm wind to the atomized sea water, arranging a first screen in one stage or a plurality of stages for passing the evaporated water components therethrough, said first screen is positioned below an opening provided at the roof of the treating chamber for exhausting the evaporated water components, adhering salt components to the first screen when the water components atomized by the rotation of the centrifugal generator and evaporated by the warm wind move upwardly toward the opening and pass through the first screen, and removing the adhered salt components by peeling and dropping the salt components from the first screen.
