US 6,499,150 B1
For a toilet for automatically exhausting odious air therefrom
Nat Thompson,
3344 102nd St.,
Corona, N.Y. 11368 (US)
Assigned to Safety Solution, Inc.,
Concord, N.C. (US)
Filed on 12-Jun-2001, as Appl. No. Safety Solution, Inc.,
Concord, N.C. (US)
Int. Cl.7E03D 9/052
US 6,499,150 B1
For a toilet for automatically exhausting odious air therefrom
Nat Thompson,
3344 102nd St.,
Corona, N.Y. 11368 (US)
Filed on Jun. 12, 2001, as Appl. No. 9/879,655.
Int. Cl.7E03D 9/052
U.S. Cl. 48212;213
7 Claims

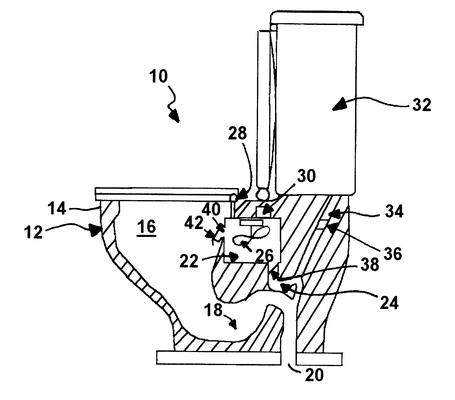

1. A toilet for exhausting odious air therefrom, comprising:
a) a bowl;
b) a main trap;
c) a housing;
d) a secondary trap;
e) a fan;
f) a water tank; and
g) a water supply line;
wherein said bowl has a rim;
wherein said bowl contains a chamber;
wherein said chamber communicates with said rim;
wherein said chamber is for receiving human waste that produces the odious air;
wherein said main trap is contained in said bowl;
wherein said main trap is for communicating said chamber with a waste so as to provide a passageway from said chamber to the
waste for the human waste;
wherein said housing is contained in said bowl;
wherein said housing is for communicating said chamber with the waste so as to provide a passageway from said chamber to the
waste for the odious air;
wherein said secondary trap is contained in said bowl;
wherein said secondary trap is for communicating said housing with the waste so as to provide a passageway from said housing
to the waste for the odious air;
wherein said fan is contained in said housing;
wherein said fan is for activating when a user sits on said bowl, and when activated, moves the odious air from said chamber,
through said housing, through said secondary trap, and into the waste;
wherein said water tank fluidly communicates with said bowl;
wherein said water tank is for supplying water to said bowl;
wherein said water supply line is contained in said bowl;
wherein said water supply line fluidly communicates said water tank with said secondary trap; and
wherein said water supply line is for allowing said secondary trap to fill with the water.
