Ceiling panel

US 6,499,262 B1
Ceiling panel
Mark A. Pinchot, Solon, Ohio (US); and Curtis P. Taylor, Chagrin Falls, Ohio (US)
Assigned to Frank Novak & Sons, Inc., Cleveland, Ohio (US)
Filed on 11-Sep-2000, as Appl. No. Frank Novak & Sons, Inc., Cleveland, Ohio (US)
Int. Cl.7E04B 1/348

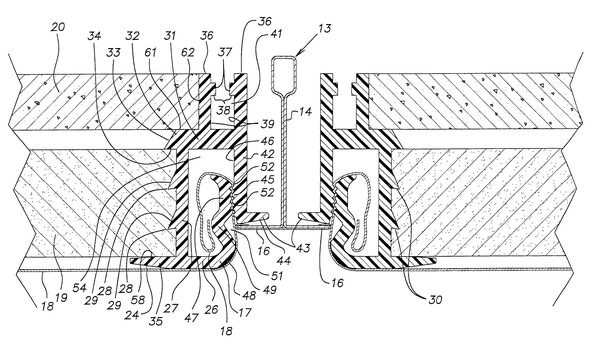

US 6,499,262 B1 Ceiling panel Mark A. Pinchot, Solon, Ohio (US); and Curtis P. Taylor, Chagrin Falls, Ohio (US) Assigned to Frank Novak & Sons, Inc., Cleveland, Ohio (US) Filed on Sep. 11, 2000, as Appl. No. 9/659,268. Int. Cl.7E04B 1/348 U.S. Cl. 528212;273 18 Claims 1. A prefabricated acoustical panel assembly for a suspended ceiling comprising a perimeter frame and a fabric sheet forming a visible face of the panel assembly, the frame comprising a plurality of extruded side members of substantially similar cross-section, the side members including integral gripping elements effective to solely retain margins of the fabric sheet in position on the frame, said extruded side members being mechanically joined to one another to form said perimeter frame.
