Bundling device for a length of line type material

US 6,499,199 B2
Bundling device for a length of line type material
Mark Frazier, 3342 Morning Brook, San Antonio, Tex. 78247 (US)
Assigned to Trans Technology Engineered Componenets, LLC, Brunswick, Ohio (US); and National City Bank, Cleveland, Ohio (US)
Filed on 20-May-2001, as Appl. No. Trans Technology Engineered Componenets, LLC, Brunswick, Ohio (US); and National City Bank, Cleveland, Ohio (US)
Int. Cl.7B65D 63/00

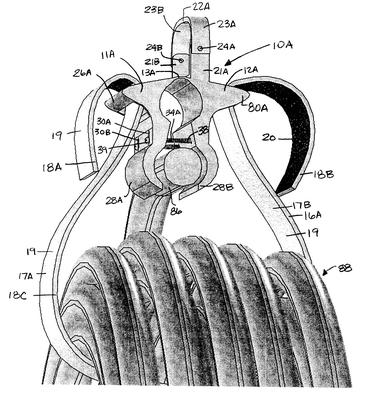

US 6,499,199 B2 Bundling device for a length of line type material Mark Frazier, 3342 Morning Brook, San Antonio, Tex. 78247 (US) Filed on May 20, 2001, as Appl. No. 9/861,749. Claims priority of provisional application 60/218567, filed on Jul. 16, 2000. Prior Publication US 2002/0043592 A1, Apr. 18, 2002 Int. Cl.7B65D 63/00 U.S. Cl. 248212;306 10 Claims 1. A line bundling device adapted to be separately disposed firmly to a segmented portion of line type material and holds a personally sized coiled length of line type material so as to permit the length of coiled line type material to be unbundled from the device and the segmented portion to stay firmly disposed to the device, comprising a reusable separate body formed of a plastic type material with at least a first piece of a predetermined size in a predetermined shape comprising all or part of a holding means whereby said body is firmly disposed to said segmented portion of line type material, where said body comprises a flexible bundling strap for looping about and bundling said personally sized coiled length of line type material therewithin, and said body is comprising all or part of a fastening means in which to dispose a first end portion of said flexible strap to said body, where said strap comprising a surface one and a surface two, a first end portion, a second end portion, and a center portion, where said strap is disposed to said body at a perpendicular position to said line, and where at least said surface one of said second end portion of said strap is comprised of a hook fastening material, and where at least said surface two of said center portion of said strap is comprised of a loop fastening material, where said body is formed in a predetermined shape so said first end portion of said strap is disposed to said body at a predetermined position where as that said hook fastening material of said second end portion of said strap may traverse a predetermined portion of said body so as to effectively relate with and join to said loop fastening material of said strap.
