Bubble jetting apparatus

US 6,499,154 B1
Bubble jetting apparatus
Takafumi Niibayashi, Hiroshima (Japan)
Assigned to Vib Tec Limited Company, Hiroshima-Ken (Japan)
Filed on 25-Jul-2000, as Appl. No. Vib Tec Limited Company, Hiroshima-Ken (Japan)
Int. Cl.7A61H 33/06

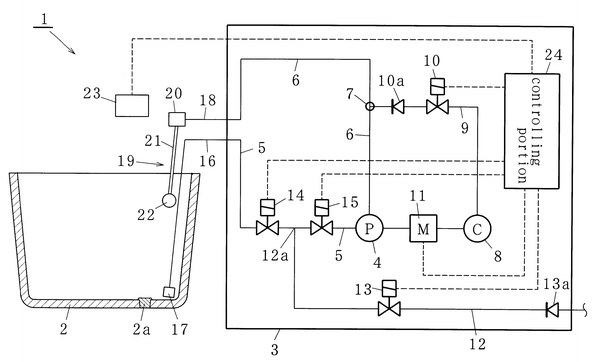

US 6,499,154 B1 Bubble jetting apparatus Takafumi Niibayashi, Hiroshima (Japan) Assigned to Vib Tec Limited Company, Hiroshima-Ken (Japan) Filed on Jul. 25, 2000, as Appl. No. 9/625,280. Claims priority of application No. 11-213198 (JP), filed on Jul. 28, 1999. Int. Cl.7A61H 33/06 U.S. Cl. 48212;541.5 9 Claims 1. A bubble jetting apparatus provided with A. an apparatus body, comprising (a) a circulating pump; (b) a suction tube connected to the suction side of said circulating pump; (c) a discharge tube connected to the discharge side of said circulating pump; (d) one or more bubble generating portions disposed at an appointed position of said discharge tube, comprising a compressed air supplying tube having one end thereof connected to a compressor, an air supplying chamber connected to said compressed air supplying tube and disposed in said discharge tube, and bubble discharging holes drilled on the circumferential wall of said air supplying chamber; (e) a compressor connected to said bubble generating portions; and (f) a drive portion connected to said circulating pump and said compressor, B. an extended suction tube portion, an end of which is disposed in bath water in a bathtub, connected to said suction tube; C. a bubble jetting and discharging tube connected to said discharge tube; and D. a bubble jetting and discharging portion connected to said bubble jetting and discharging tube.
