Broom device

US 6,499,176 B1
Broom device
Vern A. Hammond, 2664 W. Church St., Eden, N.Y. 14057 (US)
Assigned to WMH Tool Group, Inc., Palatine, Ill. (US)
Filed on 20-Apr-2001, as Appl. No. WMH Tool Group, Inc., Palatine, Ill. (US)
Int. Cl.7A46B 5/02

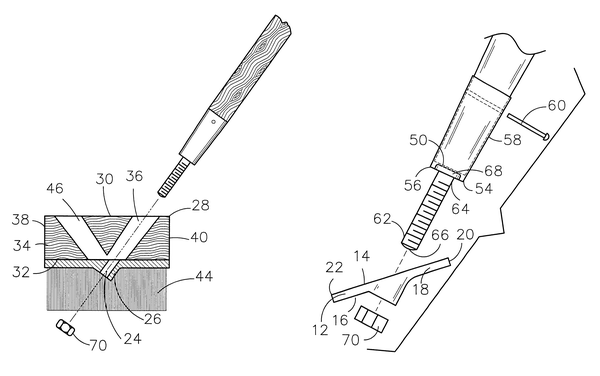

US 6,499,176 B1 Broom device Vern A. Hammond, 2664 W. Church St., Eden, N.Y. 14057 (US) Filed on Apr. 20, 2001, as Appl. No. 9/838,834. Int. Cl.7A46B 5/02 U.S. Cl. 158212;176.2 11 Claims 1. A broom and handle combination device comprising: a bar having a top side a bottom side and peripheral edge, said bar being rigid, said bar being elongate and having a first end and a second end, a hole extending through said top and bottom sides of said bar and being positioned generally between said first and second ends; a panel having an upper surface a lower surface and a peripheral edge extending between said upper and lower surfaces, said panel having at least one aperture therein extending through said upper and lower surfaces, a plurality of bristles being attached to and extending away from said lower surface of said panel, said bristles being resiliently flexible; a pole being elongate and having a first end and a second end; a rod being attached to and extending away from said first end of said pole; wherein said top side of said bar is abutted against said bottom surface of said panel such that said aperture is aligned with said hole, wherein said cap is extended into said aperture such that rod is extended through said aperture; a securing member being removably secured to said rod; and wherein said hole has an edge having an annular lip thereon extending away from said bottom side.
