Apparatus convertible to a chair or treatment table
US 6,499,163 B1 Apparatus convertible to a chair or treatment table Harold Stensby,
1663 CR 608,
Berryville, Ark. 72616 (US) Assigned to Kuo-Heey Chang,
Chiayi (Taiwan) Filed on 08-Nov-2000, as Appl. No. Kuo-Heey Chang,
Chiayi (Taiwan) Int. Cl.7A61G 1/017
U.S. Cl. 5-618
29 Claims
US 6,499,163 B1
Apparatus convertible to a chair or treatment table
Harold Stensby,
1663 CR 608,
Berryville, Ark. 72616 (US)
Filed on Nov. 08, 2000, as Appl. No. 9/707,916.
Int. Cl.7A61G 1/017
U.S. Cl. 58212;618
29 Claims

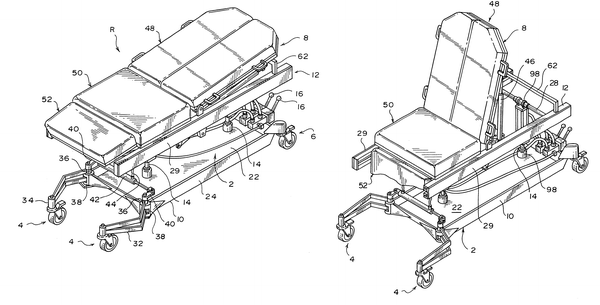

1. An apparatus convertible to a chair or table, comprising:
a) a support structure;
b) first and second pairs of wheels rotatably supporting said support structure;
c) a platform supported by said support structure, said platform including a seat support and a back support;
d) said platform being positionable between a chair configuration and a table configuration;
e) said first pair of wheels having inboard and outboard positions;
f) said first pair of wheels being automatically retracted to said inboard position when said platform is in said table configuration;
and
g) said first pair of wheels being automatically deployed to said outboard position when said platform is in said chair configuration.
